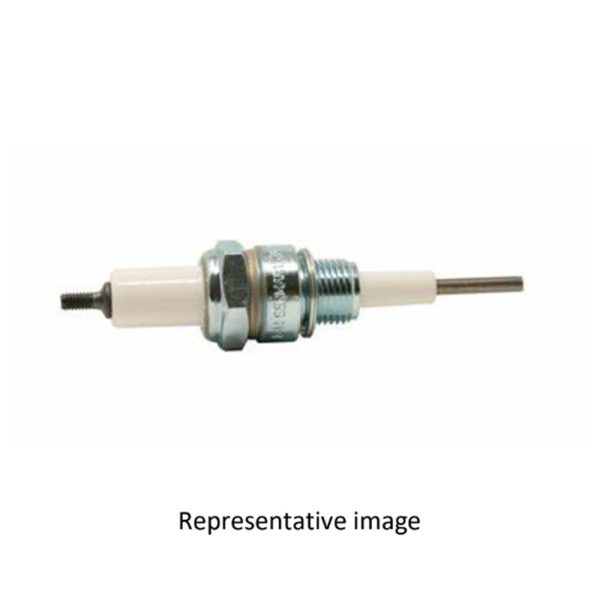

ZE14-12-1000A1 Beru Single Pole Electrodes with Thread

41,29

Beru Spark plug with Earth Electrode PN 0 009 340 083, ZE14-12-1000A1

Beru special ignition electrodes

Special ignition electrode with single electrodes also suitable for special applications such as level and temperature monitoring, flame rod and ionization rod.

Application:

Beru single pole electrodes with thread OE PN ZE14-12-1000A1 suitable for boilers and burnes engines.

Estimate available in 28 working days from Italy to Italy.

This product may vary on delivery times, as factories do not guarantee production due to lack of raw materials.

Availability: Available on backorder SKU: ZE14-12-1000A1 Categories: , Tags: , ,

Description

Technical specifications:

  • Terminal Type M4 thread
  • Electrode Material Kanthal A1, Optional NiCR 8020, X10CrNi 188, X12CrNi 188, Ø 3,5 mm
  • Isolator Aluminium oxide AL2 03 > 95 % C 795
  • Thread Size M14 × 1,25
  • Ceramic Length 16.3 mm
  • Reach 15/32″ (12mm)
  • Hex Size 1″ (26 mm)
  • Torque 45Nm
  • SW Width across flats 21
  • Length/Wire length from threaded end, 1000 mm
  • Weight: 0,123 Kg

Cross-References:

  • Beru: ZE14-12-1000A1
  • Beru: 0 009 340 083

Additional information

Weight0,123 kg
Brand

gtin

0009340083, ZE14-12-1000A1
