ZE14-12-500A1 Beru Electrodes

28,59

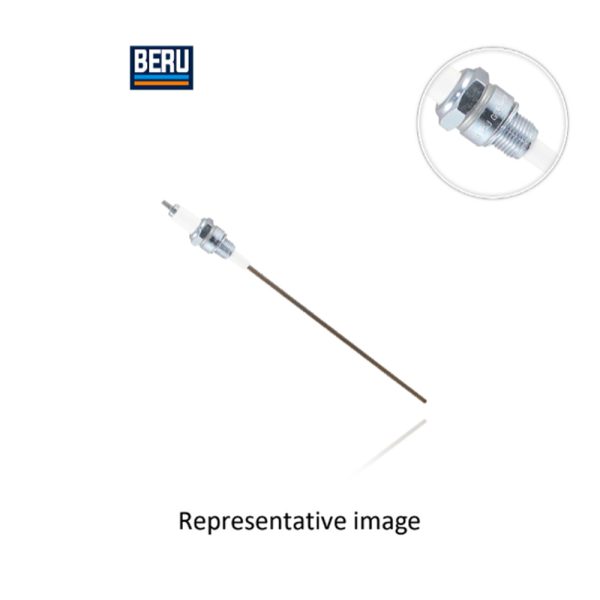

Beru ignition electrode with single electrode

Special ignition electrode with single electrodes also suitable for special applications such as level and temperature monitoring, flame rod and ionisation rod.

Application:

Beru ignition electrode with single electrode OE PN ZE14-12-500A1 M14x1,25×12 for boilers and burners engines.

Estimate available in 7 working days from Italy to Italy.

This product may vary on delivery times, as factories do not guarantee production due to lack of raw materials.

Availability: Available on backorder SKU: ZE14-12-500A1 Categories: , Tags: , ,

Description

Technical Specifications:

  • Terminal Type M4 thread
  • Electrode Material Kanthal A1, Optional NiCR 8020, X10CrNi 188, X12CrNi 188, Ø 3,5 mm
  • Isolator Aluminium oxide AL2 03 > 95 % C 795
  • Thread Size M14 × 1,25
  • Reach 15/32” (12mm)
  • Hex Size 1” (26 mm)
  • Torque 45Nm
  • Length/Wire length from threaded end, 500mm

Cross Reference:

  • Beru: ZE14-12-250A1
  • Tenneco: 0 009 340 043

Additional information

Weight0,1 kg
Tightening Torque

45 Nm

Brand

gtin

ZE14-12-500A1
