7308 Bosch Spark Plug

83,25

Genuine Bosch industrial spark plug no. 7308 for various engines such as MAN 3262. The Bosch double Ir spark plug was specially developed for biogas applications. The Iridium finishing on both electrodes reduce wear and erosion of the spark plug in biogas powered engines. Bosch Industrial Spark Plug 7308 also referenced as 0242356508.

This product may vary on delivery times, as factories do not guarantee production due to lack of raw materials.

View cart

Description

Technical information:

  • Electrode: Iridium / Iridium
  • Thread Size: 18 mm
  • Seat Type: Gasket
  • Resistor: 6 KOhm
  • Reach 13/16” (20.6 mm)
  • Hex Size: 13/16 (20.8 mm)
  • Terminal Type: Removable Nut
  • Gas: 0.12” (0.3 mm)
  • Heat Range: 3
  • Center Electrode:
    • Material: Iridium
    • Type: Standard
    • Size: 2.4 mm
    • Projection: Non-Projected
  • Ground Electrode:
    • Material: Iridium
    • Type: Project Pad
    • Size: 2.4 mm

Cross reference (Hex size 13/16″)

  • DENSO: GL3-1 / GL3-3 / GL3-5
  • FEDERAL MOGUL – CHAMPION: RB75N, RB75PP, RB75WPC, RB75WPCC
  • BOSCH: 7308, 7307
  • GATEWAY: 1175112
  • ALTRONIC: L1863B / L1863DP / L1863IP
  • STITT: RL807LL

Engine application

  • MWM: G620/TBG441B/TBG616/TBG620/TCG2020/TCG2016
  • GUASCOR: FG180/FGLD180/FG240/FGLD240/FGLD360/FGLD480/FGLD560
  • MAN: E3268 LE212/E3268 LE222/E3268 LE232/E3262 E302/E3262 LE202/E3262 LE212/E3262 LE232/E3262
  • LE242
  • 2G:AGENITOR 206/ 208/ 212/ 306/ 312
  • CAT: G3500 (non B, C and E series) / G3600 series
  • JENBACHER:J612 / J616 / J620 (1995/9 – BMEP = 16 bar or less)
  • CUMMINS: Q19G / QSV81-V16 / QSV91-V18 / QSV 81 / QSV 91 / QSK 19G / QSK 38G / QSK 45G / QSK 50G /QSK 60G

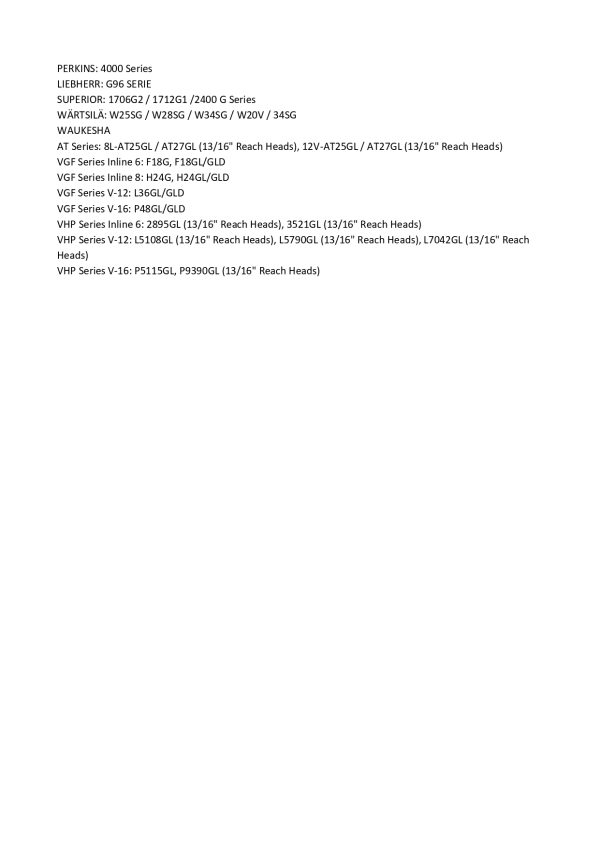

  • PERKINS: 4000 Series
  • LIEBHERR: G96 SERIE
  • SUPERIOR: 1706G2 / 1712G1 /2400 G Series
  • WÄRTSILÄ: W25SG / W28SG / W34SG / W20V / 34SG

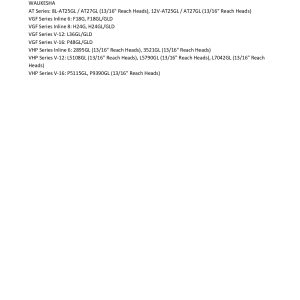

  • WAUKESHA
    • AT Series: 8L-AT25GL / AT27GL (13/16″ Reach Heads), 12V-AT25GL / AT27GL (13/16″ Reach Heads)
    • VGF Series Inline 6: F18G, F18GL/GLD
    • VGF Series Inline 8: H24G, H24GL/GLD
    • VGF Series V-12: L36GL/GLD
    • VGF Series V-16: P48GL/GLD
    • VHP Series Inline 6: 2895GL (13/16″ Reach Heads), 3521GL (13/16″ Reach Heads)
    • VHP Series V-12: L5108GL (13/16″ Reach Heads), L5790GL (13/16″ Reach Heads), L7042GL (13/16″ Reach Heads)
    • VHP Series V-16: P5115GL, P9390GL (13/16″ Reach Heads)

Additional information

Weight 0.8 kg
gtin

7308

Electrode

Thread Size

Thread Reach

,

Hex Size

,

Gap

,

Center Electrode

Ground Electrode

Brand
