05701045 PRESSURE SWICHGAGE

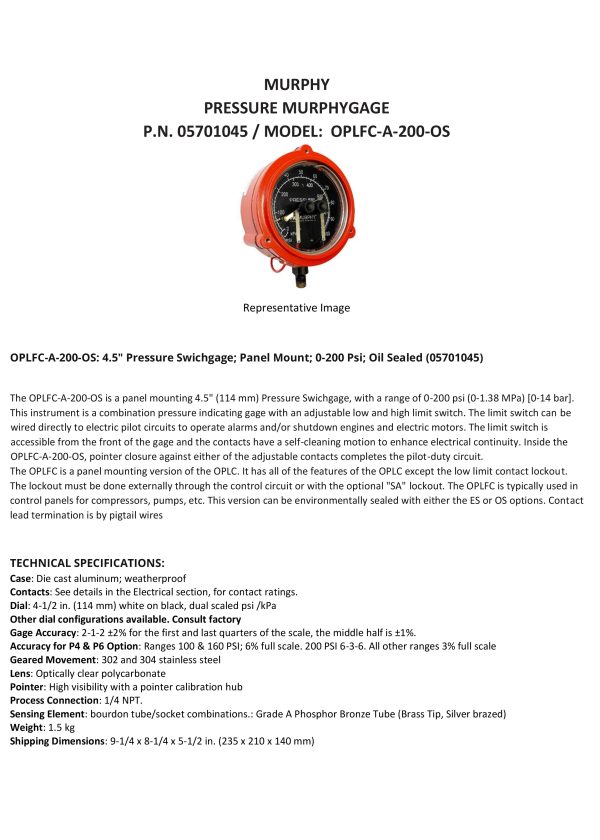

MURPHY PRESSURE SWICHGAGE OE PN 05701045, MODEL: OPLFC-A-200-OS IS A PANEL MOUNTING 4.5” (114 MM) PRESSURE SWICHGAGE, WITH A RANGE OF 0-200 PSI (0-1.38 MPA) [0-14 BAR]OIL SEALED CASE.
THIS INSTRUMENT IS A COMBINATION PRESSURE INDICATING GAGE WITH AN ADJUSTABLE LOW AND HIGH LIMIT SWITCH. THE LIMIT SWITCH CAN BE WIRED DIRECTLY TO ELECTRIC PILOT CIRCUITS TO OPERATE ALARMS AND/OR SHUTDOWN ENGINES AND ELECTRIC MOTORS. THE LIMIT SWITCH IS ACCESSIBLE FROM THE FRONT OF THE GAGE AND THE CONTACTS HAVE A SELF-CLEANING MOTION TO ENHANCE ELECTRICAL CONTINUITY. INSIDE THE OPLFC-A-200-OS, POINTER CLOSURE AGAINST EITHER OF THE ADJUSTABLE CONTACTS COMPLETES THE PILOT-DUTY CIRCUIT.

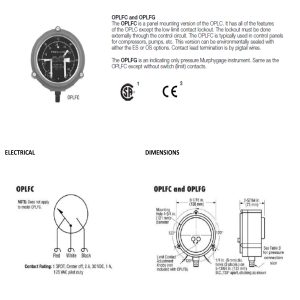

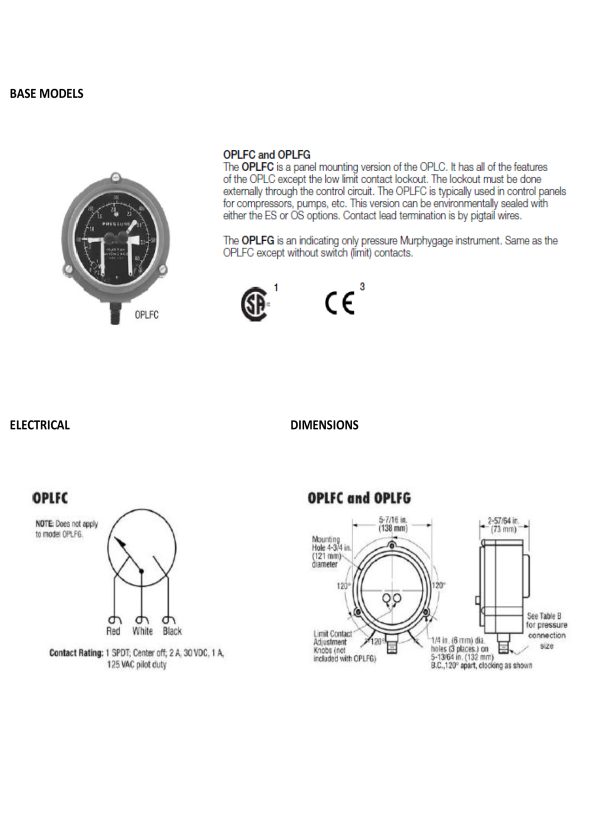

THE OPLFC IS A PANEL MOUNTING VERSION OF THE OPLC. IT HAS ALL OF THE FEATURES OF THE OPLC EXCEPT THE LOW LIMIT CONTACT LOCKOUT. THE LOCKOUT MUST BE DONE EXTERNALLY THROUGH THE CONTROL CIRCUIT OR WITH THE OPTIONAL ”SA” LOCKOUT. THE OPLFC IS TYPICALLY USED IN CONTROL PANELS FOR COMPRESSORS, PUMPS, ETC. THIS VERSION CAN BE ENVIRONMENTALLY SEALED WITH EITHER THE ES OR OS OPTIONS. CONTACT LEAD TERMINATION IS BY PIGTAIL WIRES
ESTIMATE AVAILABLE IN WORKING DAYS FROM ITALY TO ITALY: 28GG

THIS PRODUCT MAY VARY ON DELIVERY TIMES, AS FACTORIES DO NOT GUARANTEE PRODUCTION DUE TO LACK OF RAW MATERIALS
